layout: true class: inverse --- class: middle, center @kevinwatters ## Jamming a Game in .limitwidth[![](images/title-tiles.png)] .titleimg[![](images/water-anim.gif)] --- class: center # I am @kevinwattersπ³βπππ€ ### startup engineer --- class: center # I am @kevinwattersπ³βπππ€ ### startup engineer turned VR and gamedev freelancer -- .pull-left[
] -- .pull-right[
] -- .pull-left[
] -- .pull-right[
] --- ## I wanted to jam on (make quickly) a game ### (I was at the beach) -- ### that was small and light and portable -- ### and maybe learn a new language -- --
### but Unity is big and its WebGL compiles are very slow --- name: games-art
# why typescript? --- template: games-art ## games === art --- template: games-art ## ~~games === art~~ ## games == art -- ### but also... --- name: games-art-math

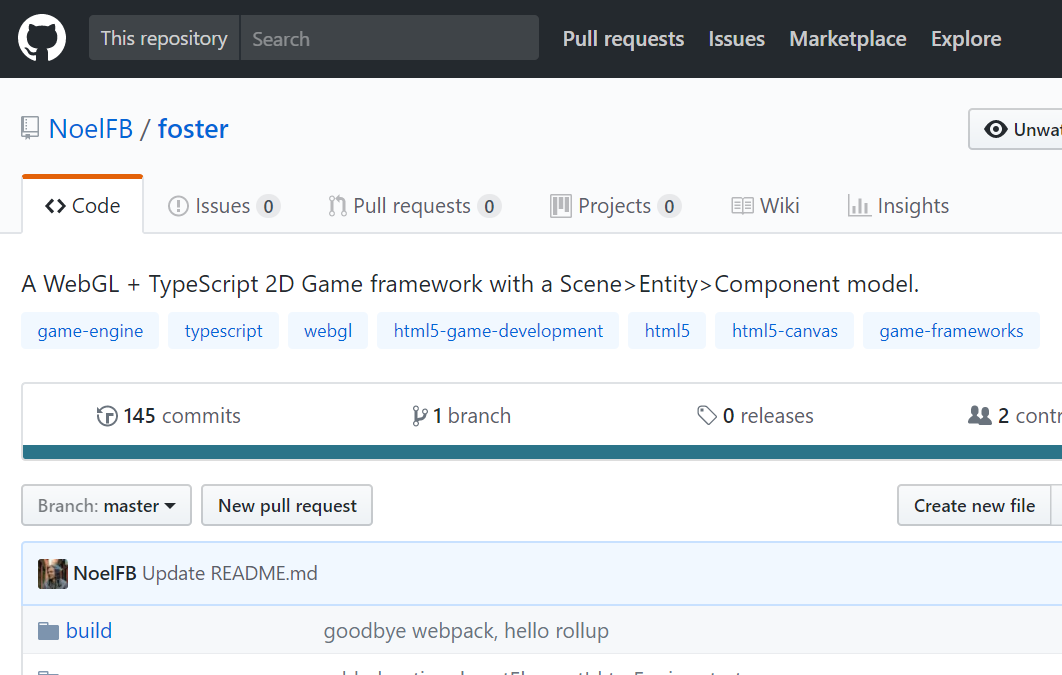

# why typescript? ## ~~games === art~~ ## games == art ### but also... ## games are systems -- ## games use math -- ### math is painful without strong typing -- (imo) ### types: -- prevents NaN hell -- , lets you make changes fearlessly ??? even on a solo or small-team, I think the benefits of types are really appearant when you're doing a lot of vector and matrix math --- # Foster https://github.com/NoelFB/foster ![](images/foster.PNG) --- # demo ### http://kevinw.github.io/games/traplands .center[
] --- # quickly: ## some TypeScript things I built --- name: decorators # @decorator fun -- Decorators hang like shiny xmas ornaments off your code. -- ### First: get *experimental* in your `tsconfig.json`: ```json { "compilerOptions": { "target": "ES5", * "experimentalDecorators": true, * "emitDecoratorMetadata": true } } ``` --- template: decorators And then you can turn this: ```typescript class BusinessBusiness { valuation: number; } ``` --- template: decorators Into this: ```typescript class BusinessBusiness { * @Track valuation: number; } ``` -- Your decorator would start with something like ```typescript public static Track(target:any, key:string):void { const type = Reflect.getMetadata("design:type", target, key); console.log("thing named " + key + " has type " + type); } ``` -- Other examples from the [docs](https://www.typescriptlang.org/docs/handbook/decorators.html): * sealing classes * annotating properties * making parameters in a function declaration @required --- template: decorators name: diamond ## they helped me solve the DIAMOND OF DEATH .pull-left[
] -- .pull-right[ ### really what you want is Entities: * Grenade * RPG Components: * Physics * GunProjectile * Transform ] --- template: diamond .pull-right[
] --- # Components in Traplands Alarm, AutoComponent, AutoRandom, AutoTimer, AutoTween, Awareness, Blockize, Burst, CausesDamage, ChildEntity, Collider, DiesOnCollision, Dragon, Emitter, Exit, Facing, Flip, Floats, Freezable, FreezingShot, GameEvents, GameEventsEmitter, Graphic, GraphicHitEffect, Health, HeartPickup, Hitbox, Hitgrid, HitgridWithHoles, KnockBack, Laser, MapLocation, Medusa, Mover, ParentEntity, ParticleAttractor, ParticleLoop, ParticleSystem, Pathfinder, PathfinderMap, Physics, Pickup, PlayerEffects, PlayerEffectsGraphic, Pushable, Rectsprite, RenderDepth, Rotater, Shadow, Shake, SoundEffect, Spikes, Sprite, SpriteAutoPlay, SpriteEvents, StaticGraphic, Tilemap, TopDownControls, TopDownDirection, Trail, Trigger, Tween, WaterFlow, Wobble, WobblyShaderParams, Wonder -- ### I was writing a lot ## Wanted to make writing them easy! --- class: smaller-code .pull-left[ ## Before ```typescript export class Mover extends Component { physics:Physics; * xSpeed:number; * ySpeed:number; constructor(xSpeed:number, ySpeed:number) { this.xSpeed = xSpeed; this.ySpeed = ySpeed; } * addedToScene() * { * super.addedToScene(); * this.physics = * this.entity.find
(Physics); * } update() { this.physics.speed.set( this.xSpeed, this.ySpeed); } setDelta(xSpeed:number, ySpeed:number) { this.xSpeed = xSpeed; this.ySpeed = ySpeed; } } ``` ] -- .pull-right[ ## After π@decorators ```typescript @Component.register export class Mover extends Component<{ xSpeed:number, ySpeed:number}> { * @Component.require physics:Physics; update() { this.physics.speed.set( this.opts.xSpeed, this.opts.ySpeed); } setDelta(xSpeed:number, ySpeed:number) { this.opts.xSpeed = xSpeed; this.opts.ySpeed = ySpeed; } } ``` ] -- .pull-right[ # π₯π₯π₯π₯π₯ ] --- # Another example ## map data and types --- class: smaller-code .pull-left[ ### map_data.json ```json { "data":[440, 435, 435, 435, ...], "height":10, "name":"terrain", "opacity":1, "type":"tilelayer", "visible":true, "width":11, "x":0, "y":0 }, ``` ] -- .pull-right[ ### map_data.ts ```typescript interface TiledLayer { data: number[]; height: number; name: string; type: string; width: number; x: number; y: number; } ``` ] -- .pull-right[ ```typescript const layer = layerJSONData as TiledLayer; ``` ] --
### the boundary between typed and untyped land is for **you** to decide -- ## πππππππππππ ## πππππππππππ ## πππππππππππ --- ## using the typescript compiler programmatically ### (it's easy!) --- # what I had ```javascript var m = n(6) , g = n(9) , _ = n(7) , b = n(84) , g = function(t) { function g() { (0, o.default)(this, g); var t = (0, l.default)(this, (g.__proto__ || Object.getPrototypeOf(g)).apply(this, arguments)); return t.startPos = new _.Vector, t.intensity = 3, ``` ```yaml HeartPickup: type: "mimic" Wobble: {} Burst: template: "mimic_heart_ambient" rate: 0.0001 rangeX: 5 rangeY: 5 x: 9 maxParticles: 20 ``` --- # what I wanted ```javascript var m = n(6) , g = n(9) , _ = n(7) , b = n(84) * , Wobble = function(t) { function Wobble() { (0, * o.default)(this, Wobble); var t = (0, * l.default)(this, (Wobble.__proto__ || Object.getPrototypeOf(Wobble)).apply(this, arguments)); return t.startPos = new _.Vector, t.intensity = 3, ``` ```yaml HeartPickup: type: "mimic" Wobble: {} Burst: template: "mimic_heart_ambient" rate: 0.0001 rangeX: 5 rangeY: 5 x: 9 maxParticles: 20 ``` --- # webpack.config.js ```javascript module.exports.plugins.push( new UglifyJSPlugin({ // ... mangle: { * except: ["Wobble"] } }) ); ``` --- # webpack.config.js ```javascript module.exports.plugins.push( new UglifyJSPlugin({ // ... mangle: { except: [ * "AutoComponent", "AutoRandom", "AutoTimer", "AutoTween", "Awareness", "Blockize", "Burst", "CausesDamage", "ChildEntity", "Collider", "DiesOnCollision", "Dragon", "Emitter", "Exit", "Facing", "Flip", "Floats", "Freezable", "FreezingShot", "GameEvents", "GameEventsEmitter", "Graphic", "GraphicHitEffect", "Health", "HeartPickup", "Hitbox", "Hitgrid", "HitgridWithHoles", "KnockBack", "Laser", "MapLocation", "Medusa", "Mover", "ParentEntity", ] } } } ``` --- # webpack.config.js ```javascript module.exports.plugins.push( new UglifyJSPlugin({ // ... mangle: { except: [ "Wobble", * /* TODO: when creating new components, add them here! */ ] } }) ); ``` --- # webpack.config.js ```javascript module.exports.plugins.push( new UglifyJSPlugin({ // ... mangle: { except: [ "Wobble", * /* GROSS: when creating new components, add them here! */ ] } }) ); ``` --- # the solution: -- ### Hmm...the compiler knows all the Components -- ### many modern languages give you (some of) the compiler as a library -- ### are we lucky here? -- ```typescript import * as ts from "typescript"; ts.createProgram(["foo.ts"], options); ``` -- # yes! --- preprocess.ts --- # things I* wish I had known -- ### *a typescript noob -- ```json { "compilerOptions": { "strictNullChecks": true // ... } } ``` ```typescript // Compiled with --strictNullChecks let x: number; x = 1; // Ok x = undefined; // Error ``` -- # ^^^^ AMAZING π΅ -- ### when I discovered this, it was too late, and enabling it caused 500+ errors in the project --- # things I want to learn about -- ## are there good (typed, ergonomic, sane) serialization frameworks? * validation * arbitrary nested serialization -- ## learn how class type definitions actually work "When creating factories in TypeScript using generics, it is necessary to refer to class types by their constructor functions. For example:" -- ```typescript function create
(c: {new(): T; }): T { return new c(); } ``` -- # β οΈβ οΈβ οΈβ οΈ --- # future plans -- * find ways to improve compilation speed? -- * check out flow for comparison? -- * more levels -- * put an electron build on steam? -- * find a way to ship a lightweight iOS version? * DOM-less GL rendering -- * make the ultimate game programming language --- class: middle, center # thanks! ### @kevinwatters
--
